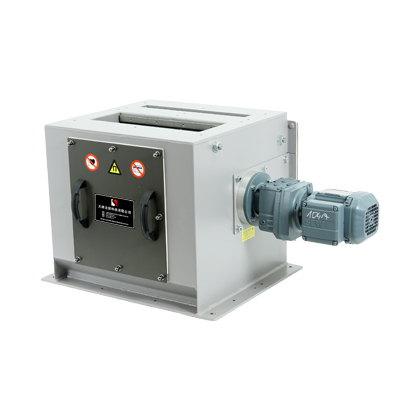

Drum In Housing Separators
Drum In Housing Separators
The drum in housing separator is used to effectively sort large pieces of magnets and fine ferromagnetic particles from non-magnetic materials, maximally protecting downstream equipment from damage and realizing automatically iron removal.

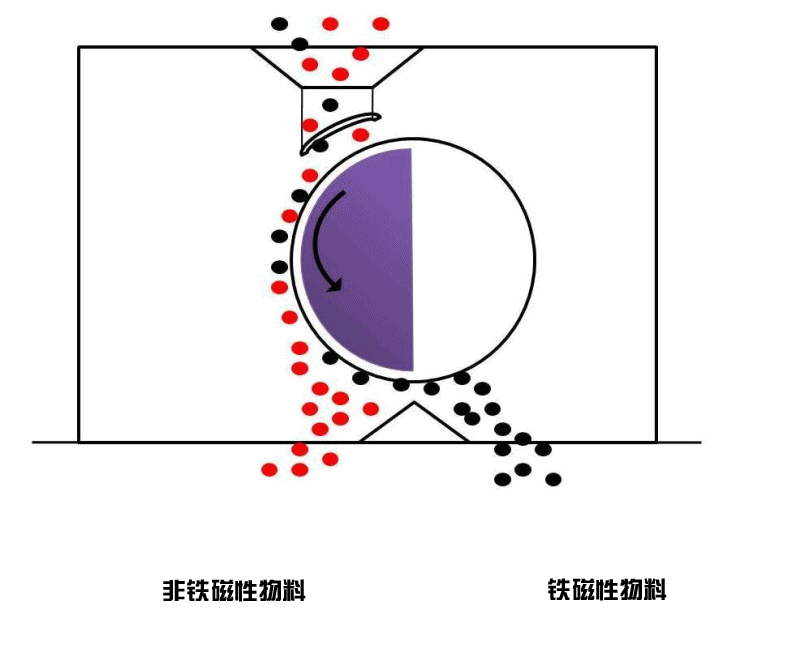

Drum in housing separators have a wide range of applications. They are always used in free-fall chutes or after a vibratory chute for powders (even fine powders), granulates, fibres and coarser product streams (non-sticky). A drum magnet has a stationary magnet segment, around which a stainless steel drum rotates. The drum carries the attached magnetic particles to the bottom of the drum. Carriers are placed on the drum to ‘push’ the particles out of the magnetic field. There the particles drop off and can be collected and carried away.
As material reaches the drum, the magnetic field attracts and holds ferrous particles firmly to the drum shell. Whereas the non-magnetic material is thrown forward by gravity and inertia, thereby achieving the automatic separation of ferromagnetic and non-ferromagnetic materials.
Characteristics and advantages
- Standard housing live up to dust-tight level
- Ball bearings are sealed lube in the whole life
- Low maintenance cost
- Fully adjustable splitter provides better separation efficiency
- Prevent machinery damage, prevent product contamination
- Automatic iron removal without manual cleaning
- A variety of magnetic circuit and temperature tolerance criteria are available
- Multiple designs, tailor-made to the application
- Optional transparent inspection window can observe iron removal conveniently
- Several inspection panels can easily access to adjust splitter angle
Continuously and automatically separate magnetic impurities or ferromagnetic materials from a variety of materials. Improve product purity and protect downstream equipment.
Coal, foundry, sand and gravel, cement, glass,ceramics, food, feed,recycling and waste, wood chip, chemicals, plastics, mining, magnesite
