Plate Magnets
Plate Magnet

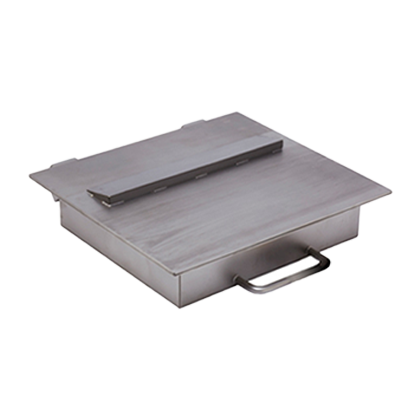

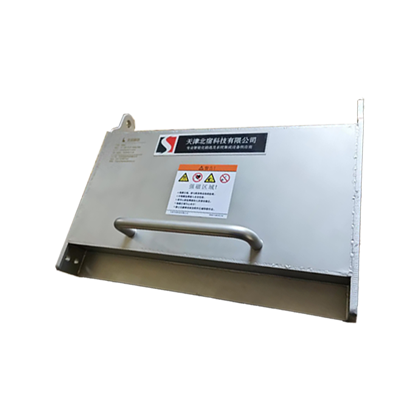

A plate magnet (also known as a high-intensity magnetic plate) is a permanent-magnet iron‑removal device specifically designed for the purification of powders, granules, and bulk materials. The equipment utilizes high‑performance NdFeB permanent magnets as the magnetic source, generating a high‑gradient magnetic field that adsorbs ferromagnetic contaminants such as iron filings, iron powder, screws, welding slag, and iron oxides from the material, thereby achieving material purification and equipment protection.
Plate magnets are typically installed at chutes, hopper outlets, vibratory feeders, conveyor pipelines, and other locations. They do not occupy additional space and can operate stably over the long term without electrical power. Their surfaces may feature protruding or hump‑shaped designs to effectively increase the contact area between the material and the magnetic field, reducing the likelihood of iron bypass. These devices are widely used in industries such as food, plastics, chemicals, ceramics, mining, and new energy.
View Full Product Overview
Application-based selection
Custom engineering available
Ongoing technical support
OVERVIEW
Product Overview
The plate magnet features a multi-stage arrangement of high-performance NdFeB magnetic cores, generating a strong magnetic field on the stainless steel surface. As powders or granular materials pass over the surface under gravity, ferromagnetic contaminants are strongly attracted and firmly retained on the magnetic surface, while the clean material continues to flow along the chute or pipeline into the next process. The raised magnetic collection structure on the surface extends the contact time between the material and the magnetic field, reducing the likelihood of iron impurities slipping away with the material and ensuring stable, efficient ferrous contaminant removal.
Features and Advantages
- High-Intensity Iron Removal: Utilizes high-performance NdFeB permanent magnets, with a surface magnetic field strength reaching 10,000–15,000 GS, effectively capturing fine iron particles and weakly magnetic impurities.
- Zero-Energy Operation: The all-permanent-magnet design requires no power supply, producing no heat, noise, or operational energy consumption.
- Leakage-Prevention Design: Raised or hump-shaped magnetic collection structures enhance the local magnetic field gradient, improving iron removal efficiency and minimizing the escape of ferrous impurities.
- Flexible Installation: Compact in size, it can be mounted inside chutes, hoppers, pipelines, or conveyor systems, accommodating various production line layouts.
- Corrosion-Resistant and Easy to Clean: The material-contacting parts are made of 304 or 316L stainless steel, with a smooth surface that facilitates cleaning and maintenance.
- Stable and Durable: The fully sealed welded construction prevents oxidation of the magnetic cores, ensuring long-term magnetic field stability with minimal degradation.
Optional Configurations
- Magnetic Field Strength Options: Available at 10,000 GS, 12,000 GS, 14,000 GS, and 15,000 GS.
- Plate Magnet Styles: Flat-type and raised-type magnetic plates.
- Magnetic Material Options: NdFeB magnets or ferrite magnets.
- Temperature Resistance Ratings: 80°C, 120°C, 150°C, and 350°C.
- Cleaning Methods: Manual wiping or automatic iron discharge mechanisms.
- Material Options: SUS304 stainless steel or SUS316L stainless steel.
- Surface Treatments: Sandblasting, wire drawing, mirror polishing, pickling and passivation, etc.
- Mounting Methods: Suspended installation or flange-mounted fixation.
Applications
- Food Industry: Iron removal during raw material conveyance and processing to prevent metal contamination and ensure food safety.
- Pharmaceutical Industry: Iron removal in pharmaceutical powder and excipient production to meet hygienic-grade cleanliness standards.
- Plastics Industry: Iron removal in injection molding and extrusion processes to protect screws and molds from damage caused by iron filings.
- Chemical Industry: Iron removal during powder conveyance and mixing to minimize the impact of metallic impurities on product stability.
- Ceramics and Glass Industry: Iron removal in raw material purification to enhance product whiteness and surface quality.
- New Energy Industry: Precision iron removal in fine powders to improve the purity of lithium battery materials and electronic ceramic powders.
- Mineral and Building Materials Industry: Iron removal on wide conveyor belts or chutes for large-scale material purification.
Handled Materials
- Powdered Materials: Such as flour, starch, milk powder, powdered sugar, cocoa powder, seasonings, and cereal flours.
- Pharmaceutical Powders: Including medicinal powders, traditional Chinese medicine powders, excipients (lactose, starch), and health supplement powders.
- Plastic Granules: Including PP, PE, ABS, PC, PET, recycled plastic pellets, and color masterbatches.
- New Energy Material Powders: Such as lithium battery cathode materials, anode graphite powders, and electronic ceramic powders.
- Chemical and Feed Granules: Including fertilizer granules, pesticide powders, detergent powders, and feed pellets.
- Food Granules: Such as grains, legumes, candies, nuts, dehydrated vegetables, and instant granular products.
SPECIFICATIONS

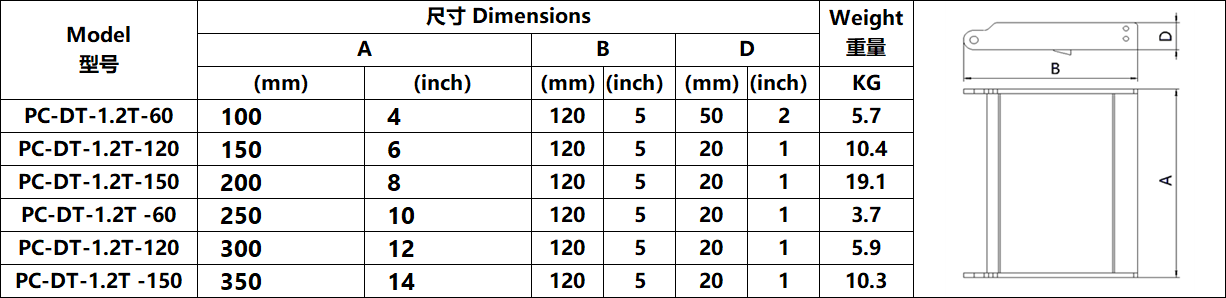

Specifications
| Model Model | Dimensions | Weight Weight |  | |||||
| A | B | D | ||||||
| (mm) | (in） | (mm) | (in） | (mm) | (in） | KG | ||
| PC-DT-1.2T-60 | 100 | 4 | 120 | 5 | 50 | 2 | 5.7 | |
| PC-DT-1.2T-120 | 150 | 6 | 120 | 5 | 20 | 1 | 10.4 | |
| PC-DT-1.2T-150 | 200 | 8 | 120 | 5 | 20 | 1 | 19.1 | |
| PC-DT-1.2T -60 | 250 | 10 | 120 | 5 | 20 | 1 | 3.7 | |
| PC-DT-1.2T-120 | 300 | 12 | 120 | 5 | 20 | 1 | 5.9 | |
| PC-DT-1.2T -150 | 350 | 14 | 120 | 5 | 20 | 1 | 10.3 | |
