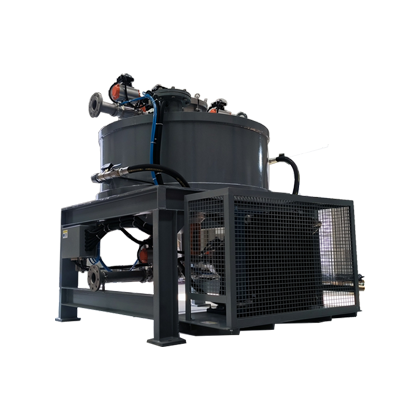

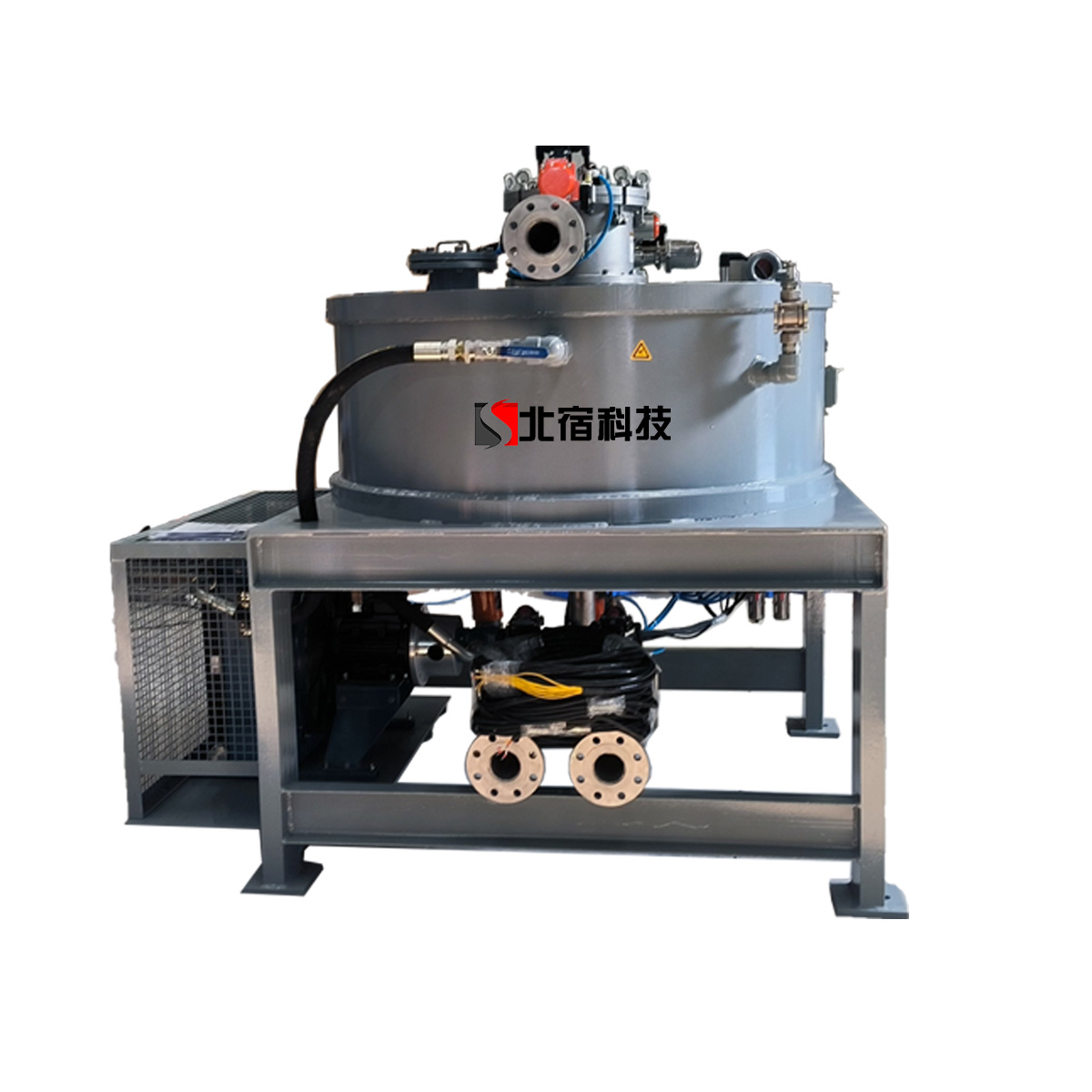

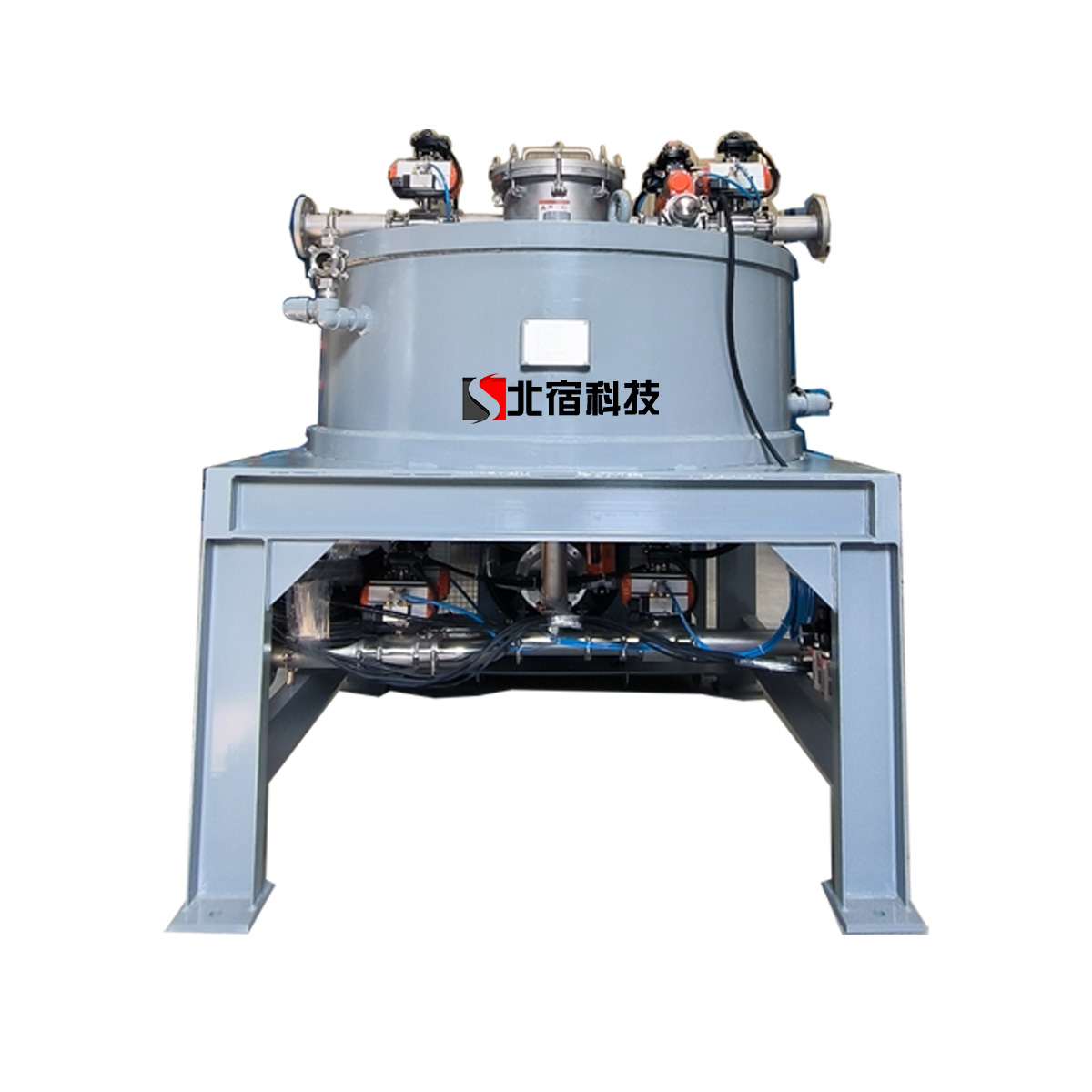

Slurry Electromagnetic Separator

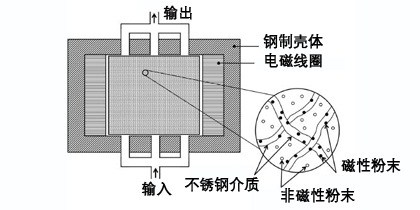

      The equipment employs high-gradient magnetic separation (HGMS) technology. When the excitation coil is energized, a high-intensity, high-gradient magnetic field is generated within the separation chamber. The slurry flows through the magnetic field region under pump-driven or gravitational action; ferromagnetic particles in the slurry are strongly adsorbed and retained by the high-gradient magnetic medium, while the clean, non-magnetic slurry passes smoothly through the chamber and is discharged. The device is equipped with a fully automatic PLC control system: once the adsorption reaches the set time or flow rate, the system automatically stops feed, de-energizes or reverses the magnetic field (some models are paired with high-pressure water/air backflushing), thoroughly flushing away the iron contaminants adhered to the magnetic medium, and then automatically resumes magnetization and feeding, enabling 24-hour continuous operation.

Features and Advantages

• Ultra-high iron removal accuracy: Magnetic field strength up to 20,000 GS or higher, effectively removing micrometer-sized ferromagnetic contaminants with an iron removal rate exceeding 99.5%.
• Fully automatic intelligent control: The PLC intelligent system supports automatic magnetization, automatic cleaning, and automatic discharge, reducing manual intervention and ensuring more stable operation.
• Efficient heat dissipation for stable operation: Utilizing forced oil circulation or water-cooling heat dissipation, the magnetic field remains stable, allowing the equipment to run continuously over long periods.
• Hygienic-grade stainless steel construction: The material-contact parts are made of 304/316L stainless steel, offering corrosion resistance and easy cleaning, suitable for the food, pharmaceutical, and lithium-battery industries.
• Reduced material loss: Optimized iron discharge and rinsing mechanisms minimize slurry carryover, thereby reducing waste of high-value materials.

Optional Configurations

• Magnetic field strength up to 20,000 GS or higher, effectively removing micrometer-sized ferromagnetic contaminants with an iron removal rate exceeding 99.5%.
• Cooling system options: Forced oil circulation cooling, internal circulation dry cooling, air cooling, etc.
• Control system options: Standard PLC touch-screen control, supporting remote monitoring, self-diagnostic fault detection, and data integration.
• Connection methods: Quick-disconnect clamps (suitable for hygienic-grade pipelines) and flanged connections (suitable for industrial high-pressure pipelines).
• Magnetic field strength customization: Background field intensity can be tailored to material characteristics (e.g., 8,000 Gs, 12,000 Gs, 15,000 Gs, etc.).
• Three types of excitation media available: mesh, rod, and spherical structures.

Applications

• New-energy lithium batteries: Installed at the outlet of batching tanks and along conveying pipelines to remove iron before mixing and coating, enhancing battery safety and stability.
• Ceramics and building materials: Installed in slurry pipelines to remove iron prior to grinding and glazing, reducing black spots and improving whiteness and yield.
• Photovoltaics and semiconductors: Installed in conveying lines to remove iron before grinding and cleaning, ensuring material purity and electrical conductivity.
• Fine chemicals and coatings: Installed in conveying pipelines to remove iron before dispersion and filling, improving product quality and stability.
• Food and pharmaceuticals: Installed in conveying lines to remove iron before filtration and filling, meeting food safety and hygiene standards.

Treated Materials

• Battery slurries: Lithium iron phosphate slurry, ternary precursor slurry, graphite anode slurry, solid-state electrolyte slurry.
• Ceramic mineral slurries: Ceramic glaze slurry, kaolin slurry, feldspar slurry, calcium carbonate slurry, talc powder slurry.
• Chemical liquids: Titanium dioxide slurry, resin solutions, paints and coatings, industrial wastewater, cutting fluids, lubricating oils.
• Other slurries: Quartz mortar slurry, silica micro-powder slurry, pharmaceutical solutions, syrups, starch emulsions, etc.
