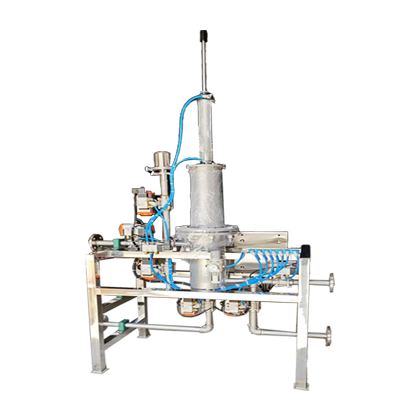

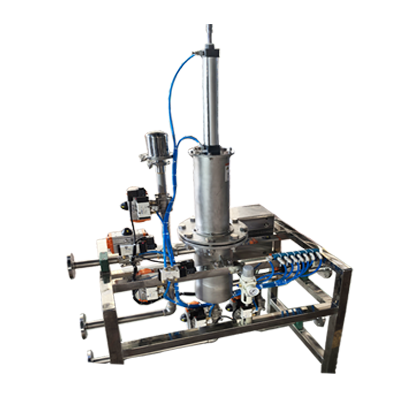

Self-Cleaning Magnetic Liquid Filter

       Under the pressure of the conveying pump, the material enters the magnetic separator chamber. As the slurry flows through the internal high-intensity magnetic rod array, the high-gradient magnetic field generated by the rods firmly adsorbs ferromagnetic contaminants such as iron filings, iron powder, and iron oxide scale onto the surface of the magnetic rods, while the cleaned fluid continues to be discharged through the pipeline. Once the equipment reaches the preset operating time, the PLC control system automatically initiates the cleaning sequence: a pneumatic actuator drives the magnetic rod assembly out of the working zone, and an integrated scraper or backflush system automatically removes the adsorbed impurities. Subsequently, the unit resets itself and resumes normal ferrous contaminant removal, enabling continuous, non-stop iron removal operations.

Features and Advantages

• Fully Automatic Continuous Iron Removal: The PLC intelligent control system autonomously completes the entire process—iron removal, slag discharge, and reset—eliminating the need for frequent manual cleaning.
• Non-Stop Online Cleaning: The automatic iron discharge process does not interrupt normal conveyance, meeting the demands of continuous production.
• High-Performance Magnetic Filtration: Utilizing high‑performance NdFeB permanent magnetic rods, with a magnetic field strength of 12,000 GS or higher, effectively capturing micrometer‑scale ferromagnetic impurities.
• Anti‑Clogging Design: Suitable for high‑viscosity slurries and fluid applications, minimizing the risk of blockage, material adhesion, and deposition.
• Hygienic Construction: The material‑contacting parts are manufactured from 304 or 316L stainless steel and can be mirror‑polished to meet hygiene standards in the food and pharmaceutical industries.
• Convenient Maintenance: Equipped with quick‑release clamps or flange connections for easy disassembly, flushing, and routine maintenance.
• Sealed and Environmentally Friendly: The fully enclosed structure reduces material leakage and dust contamination, enhancing workplace cleanliness.

Optional Configurations

• Magnetic Field Strength Options: 8,000 GS, 10,000 GS, 12,000 GS, 14,000 GS, and other magnetic field intensities.
• Cleaning Method Options: Pneumatic pull‑out automatic cleaning, automatic scraper iron discharge, and backflush automatic slag removal.
• Material Selection Options: SS304 stainless steel, SS316L stainless steel, and carbon steel lined with fluoropolymer (for corrosive environments).
• Surface Finish Options: Mirror polishing, sandblasting, wire drawing, and pickling passivation.
• Connection Type Options: Flanged connections, quick‑release clamps, threaded connections, and short‑tube connections.
• Temperature Resistance Grades: Standard ambient‑temperature models; high‑temperature versions rated at 80°C, 120°C, 150°C, and 350°C.
• Auxiliary Features: Optional configurations include a PLC touch screen, an explosion‑proof electrical control cabinet, and an automatic backflush system.

Applications

• New Energy Lithium‑Ion Battery Industry: Used for iron removal in lithium iron phosphate slurry, ternary material slurry, graphite slurry, and similar materials, preventing metallic impurities from compromising battery performance and safety.
• Ceramics and Building Materials Industry: Employed for purifying ceramic glazes, mud slurries, kaolin slurries, and other materials, enhancing product whiteness and sintering quality.
• Fine Chemical Industry: Suitable for online iron removal filtration of coatings, inks, resins, dyes, adhesives, and chemical slurries.
• Food Industry: Applied to sugar syrups, sauces, fruit juices, edible oils, seasoning liquids, and other fluids to remove iron, thereby improving food safety and product quality.
• Pharmaceutical Industry: Used for purifying medicinal solutions, oral liquids, traditional Chinese medicine extracts, and other fluids, meeting GMP clean‑production requirements.
• Environmental Protection and Industrial Fluids Sector: Employed for iron removal filtration of cutting fluids, cooling fluids, electroplating solutions, recirculating fluids, and other industrial media, extending fluid service life.

Materials Processed

• Slurries: Lithium battery slurry, ceramic glaze, ink, coating, dye slurry, kaolin slurry.
• Liquids: Sugar syrup, fruit juice, edible oil, soy sauce, beverages, medicinal solutions, oral liquids.
• High‑Viscosity Fluids: Adhesives, silicones, sealants, toothpaste, lubricating greases, cosmetic pastes.
• Industrial Fluids: Cutting fluids, cooling fluids, electroplating solutions, resin solutions, cleaning fluids, recirculating fluids.
