Magnetic Grate

        The magnetic grate forms a high-density magnetic field area through multiple powerful magnetic rods. As the material passes through the magnetic grate under gravity or conveyor action, ferromagnetic contaminants are rapidly adsorbed and firmly retained on the surface of the magnetic rods. The clean material flows through unimpeded, achieving effective separation of magnetic impurities from the bulk material. When the amount of adsorbed impurities reaches a certain level, the magnetic rods can be removed via a pull-out mechanism for cleaning, restoring the iron-removal performance and enabling reuse in a cyclical manner.

Features and Advantages

• High-Efficiency Iron Removal: Utilizing NdFeB permanent magnet material, the magnetic field strength can reach up to 14,000 gauss, effectively capturing fine iron powder and weakly magnetic impurities.
• Food-Grade Materials: The parts in contact with the material are made of SUS304 or SUS316L stainless steel, offering corrosion resistance and easy cleaning, in compliance with hygiene standards for the food and pharmaceutical industries.
• Diverse Structural Options: Available in circular and square designs, suitable for different installation environments such as hoppers, chutes, and pipeline systems.
• Grating Design: A multi-rod configuration increases the contact area between the material and the magnetic field, enhancing overall iron-removal efficiency.
• Energy Saving and Environmental Protection: Featuring a purely permanent-magnet structure, it requires no electrical power; during operation, there is zero energy consumption and no heat generation, making it ideal for continuous production environments.
• Easy Cleaning and Maintenance: Equipped with a pull-out or quick-release design, allowing for rapid removal of adsorbed impurities and minimizing downtime.

Optional Configurations

• Magnetic Field Strength Options: 8,000 GS, 10,000 GS, 12,000 GS, 14,000 GS
• Material Options: SUS304 stainless steel, SUS316L stainless steel (food and pharmaceutical grade)

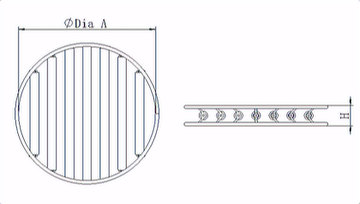

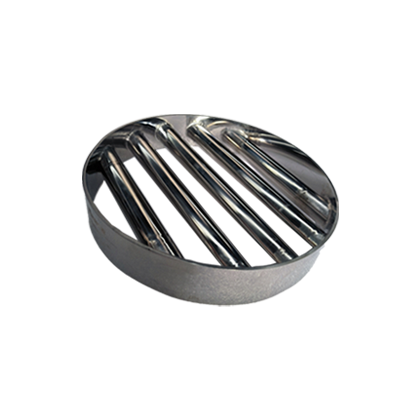

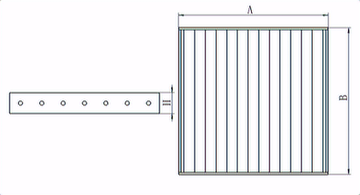

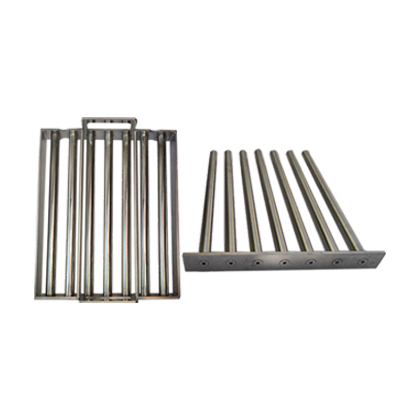

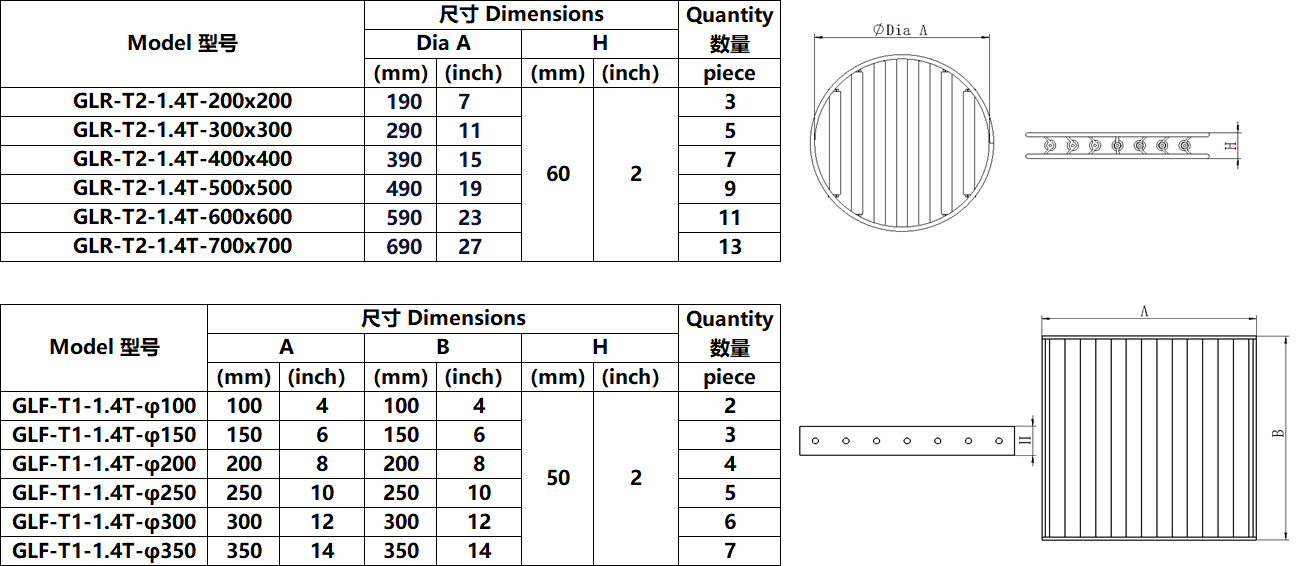

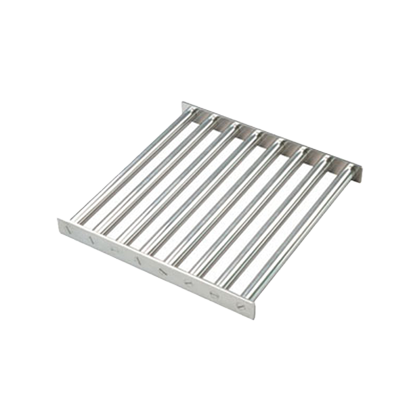

• Structural Variants: Circular magnetic grate (suitable for hoppers/pipes), square magnetic grate (compatible with flanges/chutes), drawer-type magnetic grate, fixed grating
• Magnetic Rod Arrangement Options: 3 rods / 5 rods / 7 rods / 9 rods / 11 rods / 16 rods; single-layer / double-layer / multi-layer staggered arrangement
• Magnetic Rod Diameter Options: Φ16 mm / Φ20 mm / Φ25 mm / Φ28 mm / Φ32 mm / Φ50 mm
• Temperature Resistance Grades: Standard-temperature version (≤80°C), high-temperature version (100°C–350°C)

Applications

• Plastics Industry: Iron removal in hoppers, mixers, and conveying systems. The multi-rod grating design ensures frequent contact and efficient adsorption, preventing iron filings from damaging screws and molds.
• Food Industry: Iron removal in hoppers and conveying pipelines. The multi-layer magnetic rod configuration enhances capture efficiency, safeguarding the cleanliness of continuous production.
• Chemical Industry: Iron removal during conveying and mixing processes. The high-density magnetic field coverage improves the ability to capture weakly magnetic impurities, reducing their impact on product stability.
• Lithium-Ion Battery Industry: Iron removal in storage bins and conveying systems. The multi-rod grating structure intercepts fine ferromagnetic impurities, enhancing material purity and electrochemical performance stability.
• Mineral Powder and Building Materials: Iron removal in processing and conveying stages. The multi-rod magnetic grate optimizes magnetic field coverage, boosting iron-removal efficiency and product whiteness.
• Pharmaceutical Industry: Iron removal during conveying and manufacturing processes. The smooth, seamless surface of the magnetic grate is easy to clean, meeting stringent cleanroom production standards.

Materials Processed

• Powdered Substances: Flour, starch, milk powder, powdered sugar, seasonings, graphite powder, calcium carbonate, etc.
• Pharmaceutical Powders: Active pharmaceutical ingredients, traditional Chinese medicine powders, excipients, health supplement powders, etc.
• Plastic and Chemical Powders: PVC powder, PE powder, color masterbatch powder, resin powder, pigment powder, etc.
• New Energy Material Powders: Lithium-ion battery cathode and anode materials, graphite powder, ternary materials, etc.
• Building Materials and Mineral Powders: Ceramic powder, talc powder, silica micro-powder, dry-mix mortar, etc.
