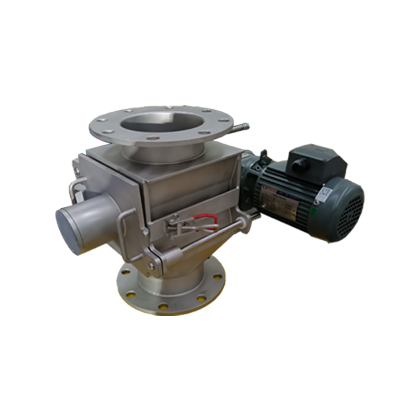

Rotary Magnetic Separator

       After the material enters the equipment chamber through the feed inlet, it passes under the rotating magnetic rod assembly by gravity. Driven by a motor, the magnetic rod assembly rotates at low speed, continuously generating a high-intensity magnetic field (up to 14,000 gauss) while gently tumbling and dispersing the material to prevent agglomeration and bridging. As the material traverses the rotating magnetic field, ferrous contaminants such as iron filings, iron powder, and welding slag are firmly adsorbed onto the surface of the magnetic rods, while the clean material flows smoothly through the gaps and is discharged, achieving a continuous, dynamic ferrous contaminant removal process. Depending on the configuration, the unit can perform manual intermittent cleaning or automatic scraper-based iron discharge, thereby meeting diverse production continuity requirements.

Features and Advantages

• Prevents arching and blockages: The rotating magnetic system continuously turns, effectively disrupting powder agglomerates and significantly reducing the risk of clogging and bridging.
• Enhanced iron removal efficiency: The rotating design increases the frequency of contact between the material and the magnetic field, making subsurface ferrous impurities more readily exposed and captured.
• Stable operation and broad adaptability: Suitable for standard dry powders as well as powders with poor flowability or slight agglomeration, meeting the demands of complex production environments.
• Permanent magnet construction, energy-efficient operation: Equipped with a high-performance NdFeB permanent magnet assembly, it requires no excitation power supply; only the drive motor consumes energy, resulting in low operating costs and simple maintenance.

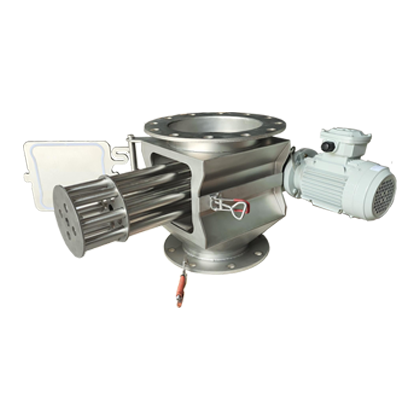

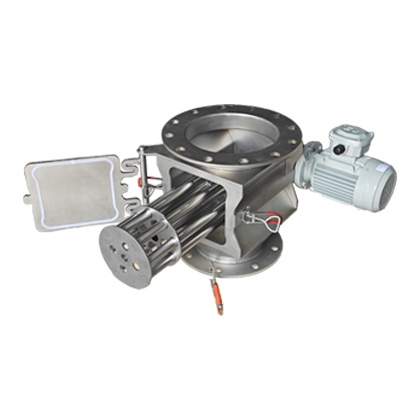

• Compact structure, easy maintenance: Featuring a quick-release design, the magnetic rod assembly can be fully withdrawn for cleaning, ensuring convenient maintenance and suitability for continuous production lines.

Optional Configurations

• Magnetic field strength options: 8,000 GS / 10,000 GS / 12,000 GS / 14,000 GS
• Magnetic system temperature ratings: Standard grade / 85°C / 100°C / 120°C / 150°C / High-temperature version (up to 350°C)
• Structural variants: Manual rotary type / Semi-automatic rotary type / Fully automatic iron discharge type (with scraper system)
• Material options: SS304 stainless steel / SS316L stainless steel (food and pharmaceutical grade)
• Connection types: Flanged connection / Quick-disconnect clamp / Custom interface
• Motor configurations: Standard geared motor / Explosion-proof motor / Variable-speed motor

Applications

• Food industry: Used for ferrous contaminant removal in food raw materials, ensuring effective elimination of metallic impurities during production and enhancing food safety and product purity.
• Pharmaceutical industry: Employed in the production of pharmaceutical powders to meet GMP clean manufacturing requirements and prevent metal impurities from compromising drug safety and stability.
• Fine chemical industry: Suitable for online ferrous contaminant removal in chemical powder raw materials, safeguarding product color, performance, and reaction stability.
• New energy industry: Applied to the ferrous contaminant removal of lithium battery cathode and anode materials as well as electronic material powders, minimizing the impact of trace iron impurities on battery performance and safety.
• Ceramics and new materials industry: Used for purifying ceramic powders and high-purity raw materials, reducing black spots and color variations caused by iron impurities and improving product quality and grade.

Materials Processed

• Powdered products: Such as flour, starch, milk powder, powdered sugar, cocoa powder, seasonings, and cereal flours;
• Pharmaceutical powders: Including medicinal powders, traditional Chinese medicine powders, active pharmaceutical ingredients, excipients (lactose, microcrystalline cellulose), and health supplement powders;
• Plastic powders: Including PVC powder, PE powder, PP powder, PA powder, recycled plastic powder, and masterbatch powder;
• New energy material powders: Such as lithium battery cathode materials (lithium iron phosphate, ternary materials), anode graphite powder, and silicon-carbon powder;
• Chemical and construction powders: Including dye powders, pigment powders, pesticide powders, fertilizer powders, dry-mix mortar, ceramic powders, and electronic ceramic powders;
• Other fine powders: Such as cosmetic powders, friction material powders, catalyst powders, and food additive powders.
